Spotlight for Train Code Recognition Lighting：
.jpg) |
.jpg) |
.jpg) |
| Model ： |
PWXL0-72 |
| |
Quantity of LED： |
72 pcs |
LED Type： |
High Power LED |
LED Brand： |
Bridgelux |
Color Temperature ： |
3800~4500K / 5000~5500 / 6000~6500 (Customizable) |
| Initial Luminous Flux: |
≥24000 lm |
Beam Angle ： |
15° / 30° / 45° / 60° / 90° (Customizable) |
Working Voltage ： |
AC85V~265V (Standard) |
| Power Factor: |
≥0.95 |
| Power Efficiency: |
≥90% |
Max.ContinuousWorking Period:
|
≤15 Minutes |
| Max.Duty Circle (per Hour): |
25% |
Power Consumption： |
210W |
Protection Level ： |
IP65 |
Operation Temperature： |
-40°C ~ 50°C |

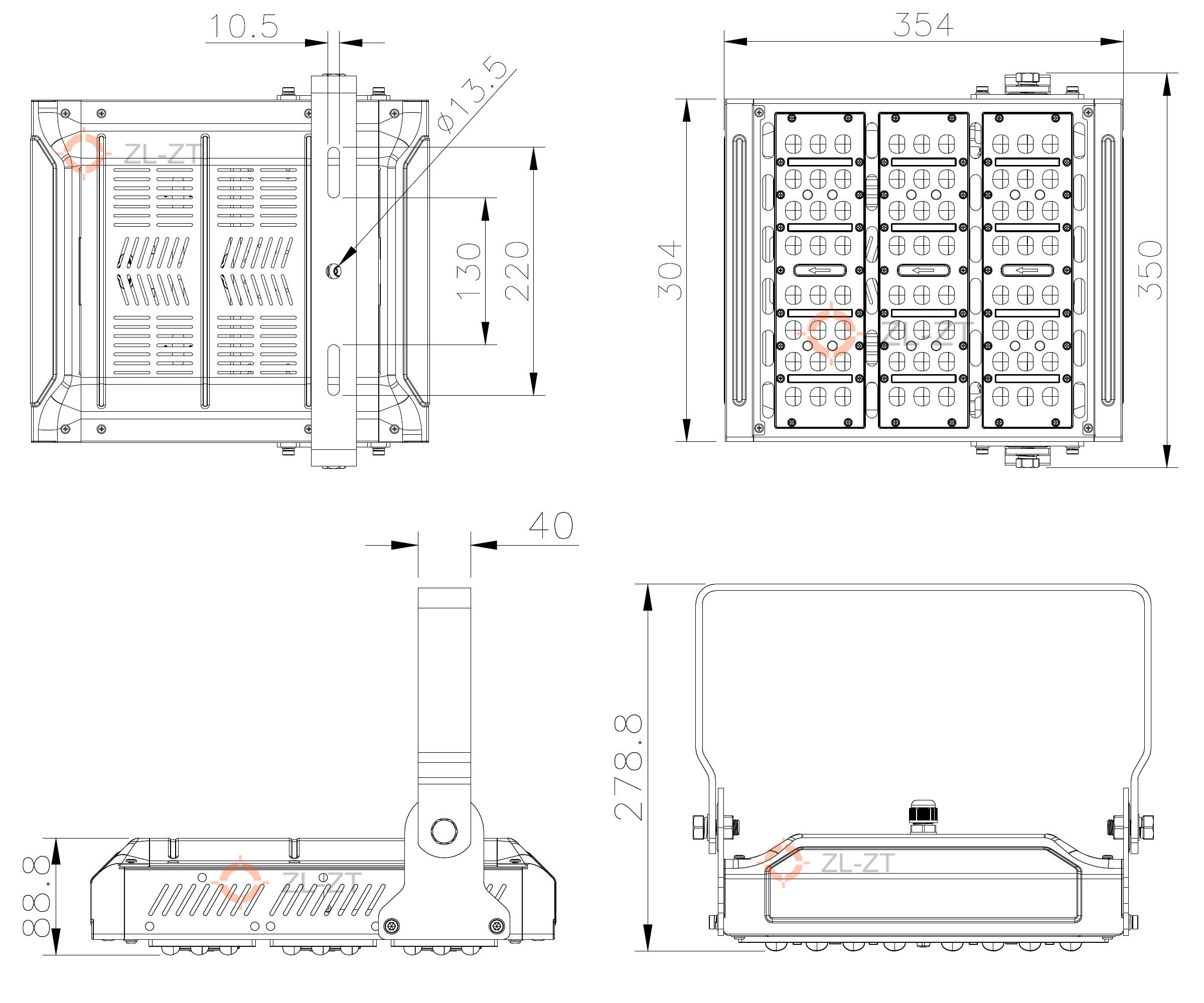

Dimension： |
350mm × 279mm × 354mm |
Weight： |
About 6.5kg |
Material： |
Aluminium Alloy |
| |
|
| |
 |
 |
|
